Wasp Thermal Microplate & Microtube Sealer 630mm x 195mm x 450mm IST-204-580MS Machine

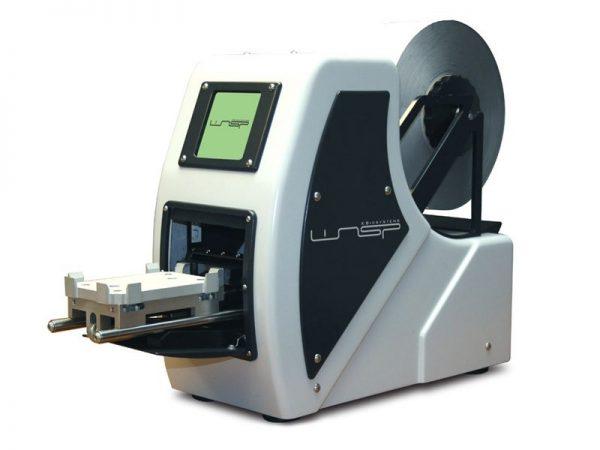

The Wasp unit is an automated heat applied micro plate and tube rack
sealer. The unit uses a roll of surface modified aluminium or plastic film
approx. 78mm wide and 610m long, the roll is positioned to the rear of
the sealing section via a removable stand, using a total inline method
the film is pulled through the main unit, cut to between 125mm and
130mm in length and then applied to the plate top surface to create the
seal between plate and film.
Offering complete versatility, the sealer will work with a wide range
of plates, tube racks and custom applications shallow and deep well
formats, and custom mouldings.
- Seal SBS format micro well plates and tubes
- Foil present sensing
- Low air sensing
- No plate present sensing
- Gas Permeable option to allow use of heat sealable gas breathable film
- Touch operation display screen
- Stacker Compatible with KBiosystems Scorpion stacker for increased throughput
- Integrator Friendly
- Full operation and interrogation via ASCII command
- Shuttle Extension version, for increased plate access offers shuttle extension of approx. 30mm.
- Seal cycle time from 6 seconds
- Seal plate height with no adjustment from 9 to 48mm high
- Temperature range from ambient to 200 degrees Celsius
- Seal time from 0.1 to 9.9 seconds
- 110/220 vac power compatible
- W 200mm x D 580mm x H 370mm to 435mm max with foil
Wasp Auto Heat Sealer parts available on request:
| IST-203-101SM |
Shim 1 |
Shim – plain |
| IST-203-102SM |
Shim 2 |
Shim – with locator |
| IST-203-103AP |
Adaptor Plate 1 |
For 17-25 mm depth plates |
| IST-203-104AP |
Adaptor Plate 2 |
For 25mm depth plates |
| IST-203-105AP |
Adaptor Plate 3 |
For non skirted plates |
